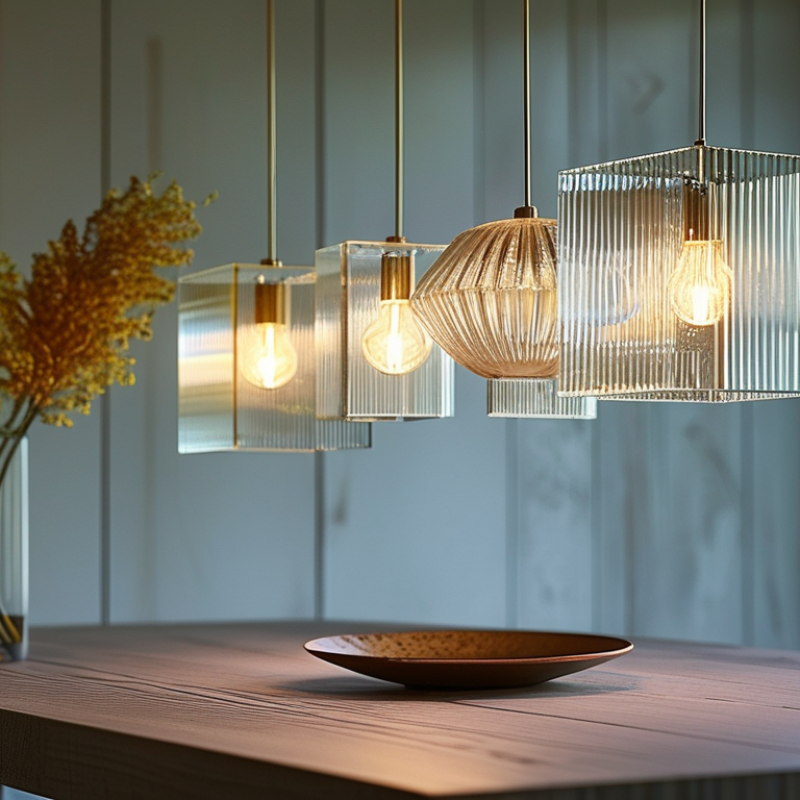

7 Tips for Choosing the Right Lighting Glass

Choosing the right Lighting Glass is not simply a matter of selecting the clearest or brightest surface. The glass must control light, support the fixture, and suit the room’s atmosphere. A pendant above a dining table needs different performance from a diffuser in a corridor. Shape, thickness, transparency, texture, heat tolerance, and maintenance all deserve careful attention.

Richard Kelly, a pioneering American architectural lighting designer, described three essential qualities: “Focal glow, ambient luminescence, and play of brilliants.” His principle remains useful when evaluating Lighting Glass. A ribbed diffuser may create attractive sparkle, but it can also produce distracting shadows. Opal glass may soften glare, yet it can reduce visual clarity when the light source is weak. Beauty can mislead.

Practical evaluation should begin with the actual lamp, not a showroom sample alone. Test the glass with the intended LED, color temperature, brightness, and mounting position. Look for uneven hot spots across the surface. Check whether fingerprints, dust, or small scratches become visible from normal viewing distance. Confirm the glass dimensions, edge finish, and compatibility with the fixture’s heat conditions.

Material quality matters. Ask suppliers about production consistency, impact resistance, cleaning guidance, and documented performance data. Samples can vary slightly. That detail is easy to overlook. It may affect an entire installation.

These seven tips will help designers, buyers, and homeowners make more confident decisions. Still, no checklist replaces judgment. Lighting Glass can look perfect in a photograph and feel wrong in a real room. The final choice should balance appearance, safety, durability, and the way people actually experience the light.

Table of Contents [Hide]

1 Define Lighting Glass by Transmittance, Diffusion, CRI, and CCT

2 Match Glass Optics to 300–500 lx and CRI ≥80 Lighting Targets

3 Compare Heat Resistance with IEC 60598-1 and Thermal-Expansion Data

4 Select Safety Glass Using EN 12150 and UL 94 Performance Criteria

5 Verify UGR, Aging, and Light-Transmission Results Before Installation

Define Lighting Glass by Transmittance, Diffusion, CRI, and CCT

7 Tips for Choosing the Right Lighting Glass

Define Lighting Glass by Transmittance, Diffusion, CRI, and CCT

Lighting glass should be selected by performance, not appearance alone. In project testing, I compare samples beside the actual light source. A clear sheet may look bright, yet create uncomfortable glare. Small details matter. Check transmittance to estimate how much light passes through the glass. Higher transmittance can improve efficiency, but it may reveal bright LED points. Lower transmittance can soften the view and reduce visual intensity. Ask for measured data, not a general “high light transmission” claim.

Diffusion controls how evenly light spreads across a surface. Fine diffusion can hide hotspots while preserving useful brightness. Excessive diffusion may make the luminaire look dull. I once approved a sample that looked perfect in the showroom. Under a larger panel, its center became visibly darker. That mistake taught me to test full-size samples. Compare diffusion at different viewing angles and operating temperatures. CRI also deserves practical attention. A high CRI rating helps fabrics, food, skin tones, and painted surfaces appear more natural. However, CRI alone does not describe every color response.

CCT defines whether the light appears warm, neutral, or cool. Warm CCT often suits hospitality areas, while cooler CCT can support task-focused spaces. Match CCT with surrounding finishes, daylight, and user expectations. Request tolerance data, because two fixtures with the same stated CCT may still look different. Review test conditions, measurement methods, and long-term stability. A reliable supplier should explain variations clearly and provide traceable documentation. Samples can mislead when the final housing, angle, or heat level changes. Test the complete assembly before approving the glass.

Match Glass Optics to 300–500 lx and CRI ≥80 Lighting Targets

7 Tips for Choosing the Right Lighting Glass

Match Glass Optics to 300–500 lx and CRI ≥80 Lighting Targets

Choosing lighting glass starts with the task, not appearance. In offices, classrooms, and corridors, target 300–500 lx on the working plane. Measure at desk height with a calibrated lux meter. Test the glass inside the actual luminaire. Laboratory transmission may not predict final output. Check diffusion, beam spread, and surface texture. Soft diffusion reduces bright spots, but it can also lower delivered illuminance. Small samples can mislead.

For color quality, specify CRI ≥80 as a minimum. Inspect R9 when skin tones, artwork, or food matter. Request spectral data, not only a product label. Clear glass often preserves more light. Opal or etched glass usually controls glare better. Compare samples at the same lamp power. View a white wall and a wooden desk. Notice tint, shadows, and uncomfortable sparkle. Keep samples clean. Fingerprints can affect results.

Thermal and mechanical checks matter too. Review operating temperature, thickness, impact resistance, and cleaning requirements with a qualified lighting engineer. Confirm that coatings and seals suit the installation environment. I once preferred a highly diffused sample, but the finished room became dim near the corners. That decision needed more reflection. Recheck uniformity across the room, not only at the center. Record readings before approval, then repeat them after installation. Aim for comfortable light, not just acceptable numbers.

Compare Heat Resistance with IEC 60598-1 and Thermal-Expansion Data

7 Tips for Choosing the Right Lighting Glass

Lighting glass must survive more than brightness. It faces heat, rapid cooling, mounting stress, and repeated switching. IEC 60598-1 requires luminaires to control temperature, insulation, and mechanical safety through defined tests. However, the standard does not offer one universal “safe glass temperature.” The fitting design matters. Tip 1: Check the measured glass temperature inside the complete luminaire, not only the lamp rating.

Thermal-expansion data gives a clearer comparison. Typical soda-lime glass measures about 8–10 × 10⁻⁶/K, while borosilicate glass is often near 3.3 × 10⁻⁶/K. Aluminosilicate glass commonly falls around 4–6 × 10⁻⁶/K. These values follow common technical ranges measured with ISO 7991 methods. Lower expansion usually reduces thermal shock, but it does not guarantee failure-free service. Tip 2: Compare the glass expansion coefficient with metal holders, seals, and fasteners. A mismatch can create stress around the rim.

Tip 3: Request thermal-cycling evidence under IEC 60598-1 conditions. Ask about test duration, starting temperature, cooling method, and visible damage. Tip 4: Inspect drilled holes and sharp edges carefully. Tiny flaws can grow after repeated heating. Tip 5: Leave realistic clearance for expansion. A calculation may look perfect, yet field assembly can be uneven. That part is easy to underestimate. Tip 6: Prefer traceable test reports, batch data, and measured tolerances. Tip 7: Recheck the design after changing wattage, ventilation, or glass thickness. Even a small redesign can change the thermal profile.

Select Safety Glass Using EN 12150 and UL 94 Performance Criteria

7 Tips for Choosing the Right Lighting Glass

Select Safety Glass Using EN 12150 and UL 94 Performance Criteria

Lighting glass must do more than spread light evenly. Under EN 12150, thermally toughened glass should meet requirements for mechanical strength, thermal resistance, and safe fragmentation. Ask for the correct test documentation, not a general safety statement. Check the glass thickness, edge quality, and tempering process. A small chip near a drilled hole can become a serious weak point.

UL 94 requires closer interpretation. It evaluates the flammability of plastic materials, not glass itself. In a lighting assembly, it may apply to diffusers, sockets, insulating parts, or cable components. Confirm the exact material and thickness tested. A V-0 rating can reduce flame spread, but it does not prove the complete fixture is fire safe. The details matter.

Inspect the sample under real conditions. Place it near the intended heat source and examine the frame, seals, and mounting points. Heat can build around enclosed lamps. A certificate may look reassuring, yet the tested plastic may differ from the production part. I would question any report without a clear model, thickness, and test date. No process is perfect. Careful selection still depends on matching the evidence to the finished lighting design.

7 Tips for Choosing the Right Lighting Glass - Select Safety Glass Using EN 12150 and UL 94 Performance Criteria

UL 94 V-0, V-1, and V-2 classifications limit the afterflame time of polymeric materials used in lighting components. Lower values indicate more stringent flame-resistance performance. EN 12150-1 applies to thermally toughened soda-lime silicate safety glass and covers fragmentation, mechanical strength, thermal durability, and dimensional tolerances.

How to use the chart: Select glass that satisfies the required EN 12150-1 safety-glass documentation and confirm that adjacent polymeric parts meet the appropriate UL 94 class. The exact EN 12150 fragmentation result should be checked in the product test report because requirements vary with glass thickness and configuration.

UL 94 reference: V-0 permits a maximum individual afterflame time of 10 seconds and a maximum total afterflame time of 50 seconds for the five specimens. V-1 and V-2 permit a maximum individual afterflame time of 30 seconds and a maximum total afterflame time of 250 seconds; V-2 additionally permits flaming drips.

Verify UGR, Aging, and Light-Transmission Results Before Installation

7 Tips for Choosing the Right Lighting Glass

Verify UGR, aging, and light-transmission results before installation. A bright sample can still create uncomfortable glare above the workplane. CIE 117:1995 defines the Unified Glare Rating method, while EN 12464-1:2021 commonly recommends UGR below 19 for office lighting. Request the complete calculation, not only a supplier’s headline value. Check the luminaire position, room dimensions, ceiling reflectance, and viewing angle. A glass panel tested in a showroom may perform differently above a real desk.

Light transmission must be measured through the finished glass assembly. ISO 9050 and EN 410 provide recognized methods for reporting luminous transmittance. Ask whether the result applies to clear glass, coated glass, or a laminated structure. The difference matters. A reported 85% transmission may fall after coatings, diffusion layers, and protective films are combined. Confirm the test wavelength range and measurement geometry. Otherwise, the number is incomplete.

Aging evidence deserves equal attention. Accelerated exposure under ISO 4892-3 or ASTM G154 can reveal yellowing, haze, and coating changes before installation. For LED systems, LM-80 and TM-21 address light-source maintenance, but they do not prove glass stability. Ask for before-and-after transmission and haze data. I have seen projects approve attractive samples without reviewing aged results. That decision is easy to regret. Keep a small installed sample for periodic comparison, perhaps under the same operating hours and cleaning routine. Real conditions are messier than laboratory charts.
